HiLetgo BME680 Digital Temperature Humidity Sensor Module(Temperature/Humidity/Pressure/VOC Gas) 4 in 1 Sensor High Precision Environmental Monitoring Sensor with SPI IIC DC 5V

Description:
Working voltage: DC 5V
Working temperature: -40 ℃ ~ + 85 ℃
Communication interface: 12C (up to 3.4 MHz) and SPI (3 and 4 wires, up to 10 MHz)
Humidity, pressure and gas sensors can be enabled / disabled individually
The current consumption at 1 Hz humidity and temperature is 2.1 LA, the current consumption at 1 Hz pressure and temperature is 3.1 LA, and the current consumption at 1 Hz humidity, pressure and temperature is 3.7 LA
Gas sensor parameters: response time (33-63%) <1s (for new sensors) power consumption in ultra-low power mode <0.1 mA output data processing direct indoor air quality (IAQ) index output humidity sensor parameters: response time (0 -83%) ~ 8s
Accuracy tolerance ± 396r
Hysteresis ± 1.5% r.h.

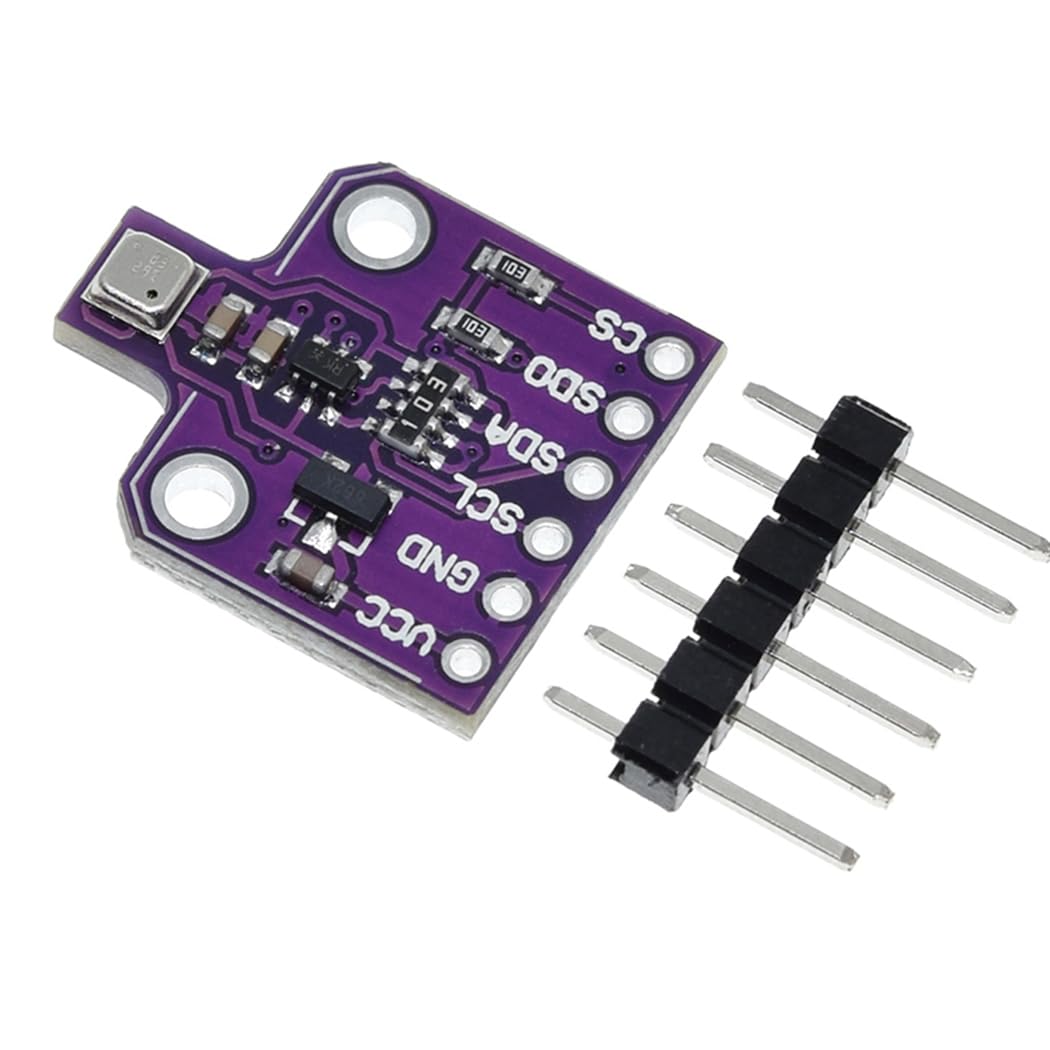

Pin definition:
VCC: Power supply is positive
GND: ground
SCL: 12C / SP1 clock line
SDA: 12C / SP! Data cable
SDO: SPI data cable
CS: SPI1 slave enable
Package included:
1 * BME680 Digital Temperature Humidity Pressure VOC Sensor Module
BME680 Digital Temperature Humidity Sensor Module
Temperature/Humidity/Pressure/VOC Gas, 4 in 1 Sensor Module
High Precision Environmental Monitoring Sensor with SPI IIC DC 5V
